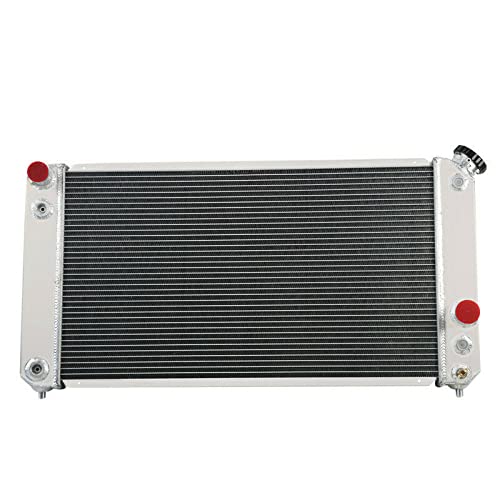

1994-2005 Chevy Blazer S10 GMC Jimmy Sonoma Oldsmobile Bravada Isuzu Hombre 4.3L V6 Aluminum Radiator with Fan Shroud & Thermostat Kit - Direct Fit Replacement for Improved Engine Cooling - Perfect for Off-Roading, Towing & Daily Driving

Product Description

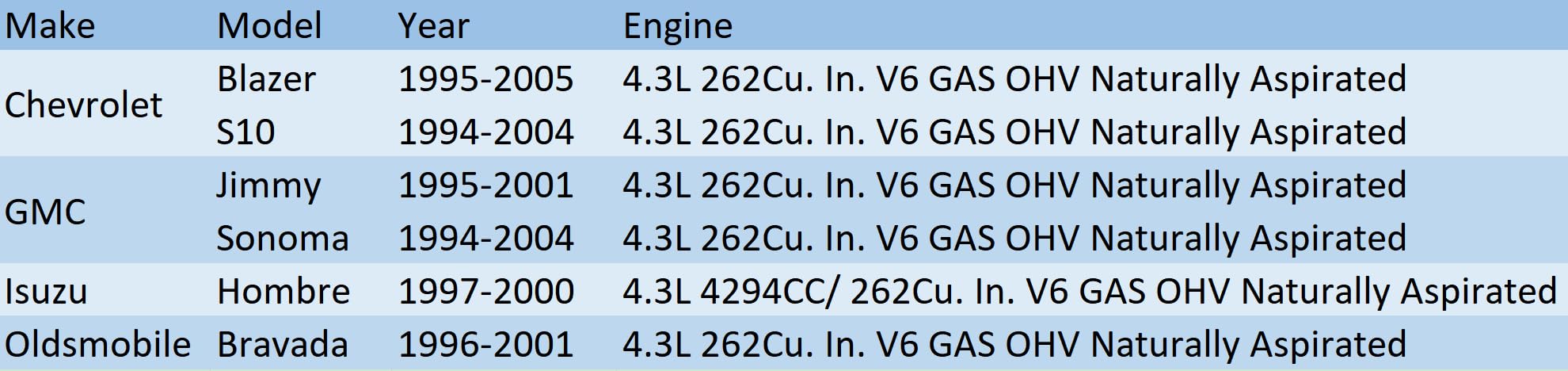

Radiator Details: Type: 3 Core Radiator+Shroud+2x12"Fan+Thermostat Kits Core Thickness: 1.73'' Color: Silver Core/Tank Material: All Aluminum Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain Delivery: Local Delivery Fitment Type: Direct Replacement Trans Cooler Included: 1/2"" 20 STRAIGHT THREAD G1/4 Mount Type: Pin Transmission: Automatic and Manual Manufacturer Part Number: 1826 CU1826 RAD1826 DPI1826 8011826 Compatible with: 1995-2005 Chevy Blazer 4.3L V6 GAS 1994-2004 Chevy S10 4.3L V6 GAS 1995-2001 GMC Jimmy 4.3L V6 GAS 1994-2004 GMC Sonoma 4.3L V6 GAS 1996-2001 Oldsmobile Bravada 4.3L V6 GAS 1997-2000 Isuzu Hombre 4.3L V6 GAS> FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans and pull air in through radiator.
